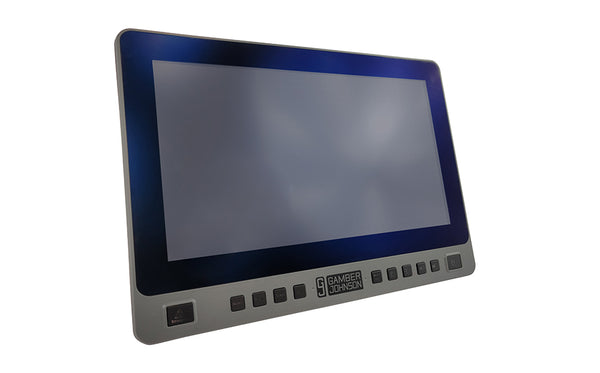

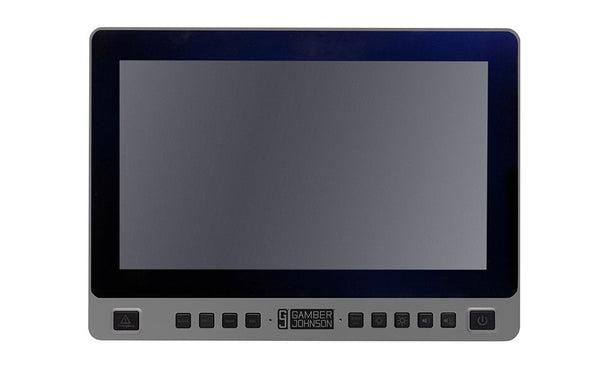

Gamber-Johnson 7160-1451-00: 13.3" Capacitive Touch Screen

Regular price $ 1,340.00 Sale

Product SKU: 7160-1451-00

This 13.3-inch touch-screen provides a wide view display and a five-point capacitive touch screen integrated with a wide range of functionality and port replication. The 1000-nit display with adjustable brightness offers just the right view and the capacitive five-point touchscreen technology provides better accuracy and more fluid response. Combine this touch-screen with a smartphone charging cradle, multi-adapter hub, and mobile keyboard for a complete mobile office solution.

Kit Includes

  • 13.3" touchscreen
  • Power cable with bare wire end
  • HDMI cable (4 ft.)
  • USB Type B cabl (5 ft.)
  • Mounting hardware
  • Instruction Guide

Port Replicator

  • (1) HDMI
  • (1) VGA
  • (1) USB type C (2A @ 5V) fast charging
  • (1) USB type B (for Touch Control)
  • (2) USB 3.0 (fast charging 1.5A)
  • (1) Aux. out 3.5 mm
  • (1) DC input (Barrel Jack)

Features

  • Utilize this capacitive touch screen to connect devices for a complete mobile office solution
  • Combine this touch-screen with a Gamber-Johnson smartphone docking station, rugged USB hub, and Rugged Lite keyboard for a complete mobile office solution.
  • 13.3 inch touch-screen display, high resolution 1920 x 1080, Brightness: 50-1000 nits (adjustable)
  • Ambient light sensor - automatically adjusts screen brightness
  • 5-Point muliti-touch technology - better accuracy and fluidity (speed) with greater support for smartphone gesture support
  • Blackout button allows screen to be blacked out for privacy or to minimize driver distraction without having to reboot the touch-screen
  • Brightness and Volume buttons enable adjustments to be done right on the touchscreen
  • Programmable Emergency button - send instant notification in case of an emergency
  • Sleep mode to reduce power consumption when not in use.
  • Bottom-facing ports with integrated cable restraint system
  • Integrated stereo speakers allow for sound directly from the computing device
  • Warm up indicator light - indicates that the touch-screen is powered up
  • Anti-glare coating to reduce glare for better visibility
  • VESA 75mm and 100mm mounting holes
  • Includes the following cables: HDMI, USB type B, and power cable with bare wire end

Specifications

  • Glass: Anti-glare, anti reflective
  • Contrast Ratio: 900:1
  • Resolution: 1920 x 1080
  • Backlight: LED
  • Brightness: 1000 nits
  • Auto Brightness Adjust: (50 nits - 1000 nits) Option to disable in the Menu
  • Display Color: 16.7M
  • Aspect Ratio: 16:09
  • Viewing Angle: 85°/85°/85°/85° (R/L/U/D) CF>10
  • Active Area: 293.76 x 165.24 mm
  • Power: 11-16 V @ 5A (12V Nominal)
  • OSD Buttons: Emergency, Source,Menu, Home, Escape, Blackout, Brightness +/-, Volume +/-, Power
  • I/O: (1) DC Power in, (1) Audio 3.5mm, (1) HDMI, (1) VGA, (1) USB type B, (2) USB type A, (1) USB type C
  • Platforms Supported: Windows (XP or Above), Android, Linux, Mac OS / iOS
  • Ingress Protection: Front Panel (IP65)
  • Response Time: 40 ms (max)
  • Temperature Range: Operating: -20C to +70C; Storage: -30C to +80C
  • Speakers: (2) 5W
  • Mounting Capability: VESA 75MM

Testing & Certificates

  • MIL-STD 810G shock and vibration specifications
  • MIL-STD 810G Temperature and Humidity (operational and storage)
  • SAE J1455 30mph crash testing

Compliance

  • FCC, CE, RCM, RoHS, REACH

Warranty

  • 1 Year Limited Warranty


Availability, Lead Times and Shipping

Please note that ALL Gamber-Johnson and Havis mounting and docking equipment typically takes at least a week to ship.  Lead times can often be 3-6+ weeks or longer depending on the exact items purchased.  The following is guidance only and changes frequently.

  • Basic mounting hardware such as plates or poles:  1-2 weeks to ship
  • Vehicle-specific kits or more complex mounting solutions:  2-4 weeks to ship
  • Powered docking stations with port replication:  4-8+ weeks to ship.
Please call, email, or chat with us to discuss lead times as it specifically relates to your needs.  Expedited shipping methods selected at checkout do not speed up lead times but rather reduce transit time when an order ships.
